Pedro Gil presents their blowers, designed for faster, easier and efficient maintenance.

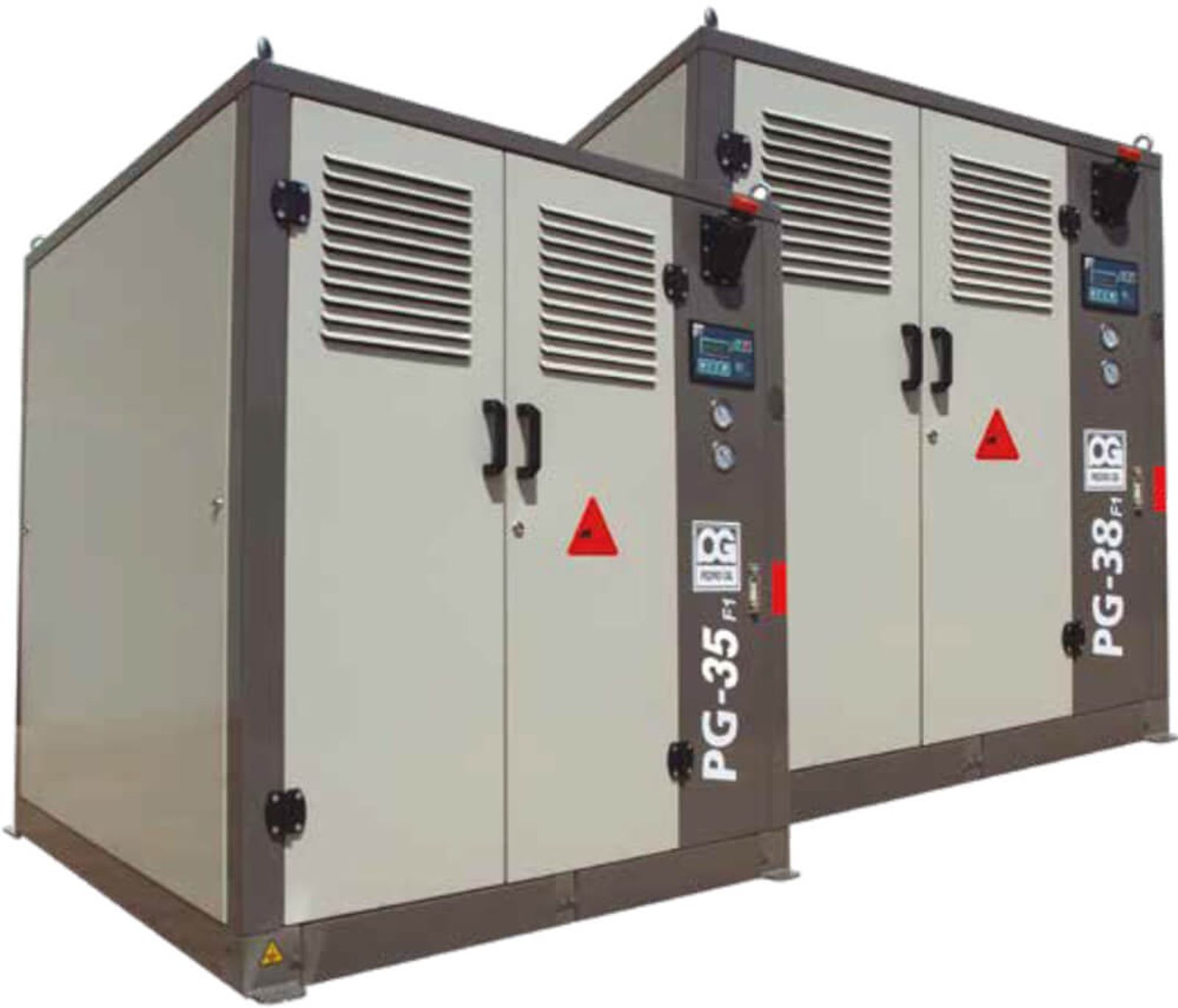

The soundproof cabinet has doors which open to give access to the blower group to carry out regular maintenance, which can be done with the same speed as with an F-1. It is also possible to install several groups side by side without any interference between them saving space and with total access.
Current acoustic regulations have become an important element in most work environments. We have carried out acoustic studies to significantly improve this product. The units are made of galvanized iron and each panel has a core of fonoabsorbente sound absorbing material.
In Pedro Gil we have designed the rotating pistons for our RNT blower with three sealed lobes, dynamically balanced within a forged housing. This housing includes a specific system in the discharge function which allows progressive compression and therefore a reduction in vibration where it occurs.
The gears use helical heat-treated machined teeth in compliance with DIN-6. The fitting on the shaft is conical, without parallel keys and lubrication is by oil splash for the gears as well as the bearings. The seal between the compression chamber and the oil housing is achieved by way of labyrinth segment seals and an intermediate condensation chamber.
Finally, the seal between the drive shaft and the outside is achieved through a radial lip seal (Retén).

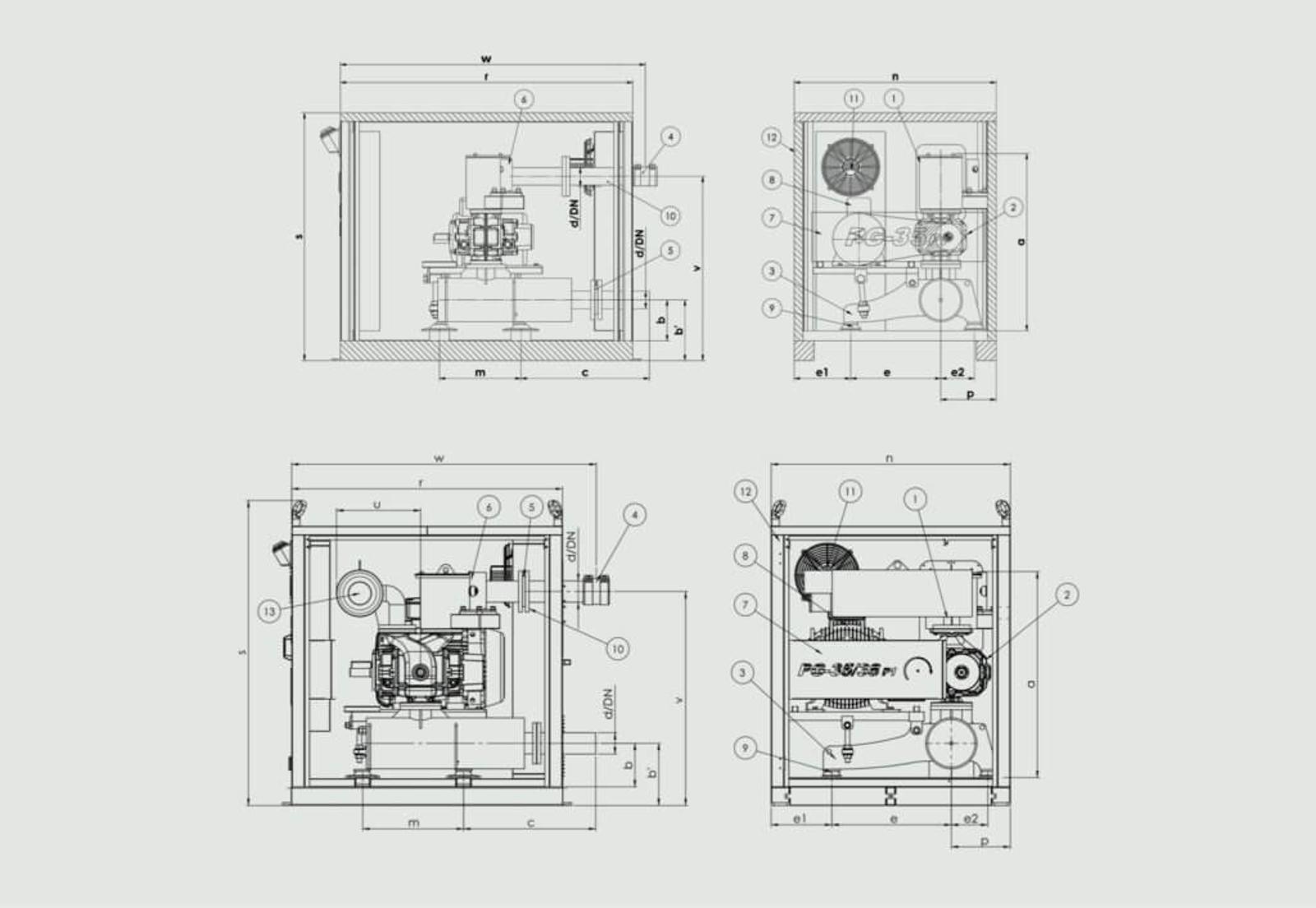

This type of compact vacuum group PG35/38-F1 uses activation by trapezoidal belts and conical sleeve pulleys. s/din 7753 and s/din 2211 respectively.
Direct access to the main maintenance points as well as all the valves, safety and check valves, through a panel on the pressure side.
Optimization of space
Gauges situated on the front and rear panels to facilitate the installation of more blower groups on the sides.
Safety valve easily accessible.
Oil level visible from the exterior of the cabinet and change of oil filter by only opening the door of the cabinet.
Ease of use
A system which simplifies the filling and emptying of oil conveniently, reliably and quickly. Tightening of the belts without the need to dismantle the cabinet.
Included as standard on the floor of the cabinet.
Electronic control panel showing: temperature, pressure, vibration and oil level. Optional internet connection.
The optimal design of the cabinet allows easy positioning and moving.
